The Machine

Technical Overview

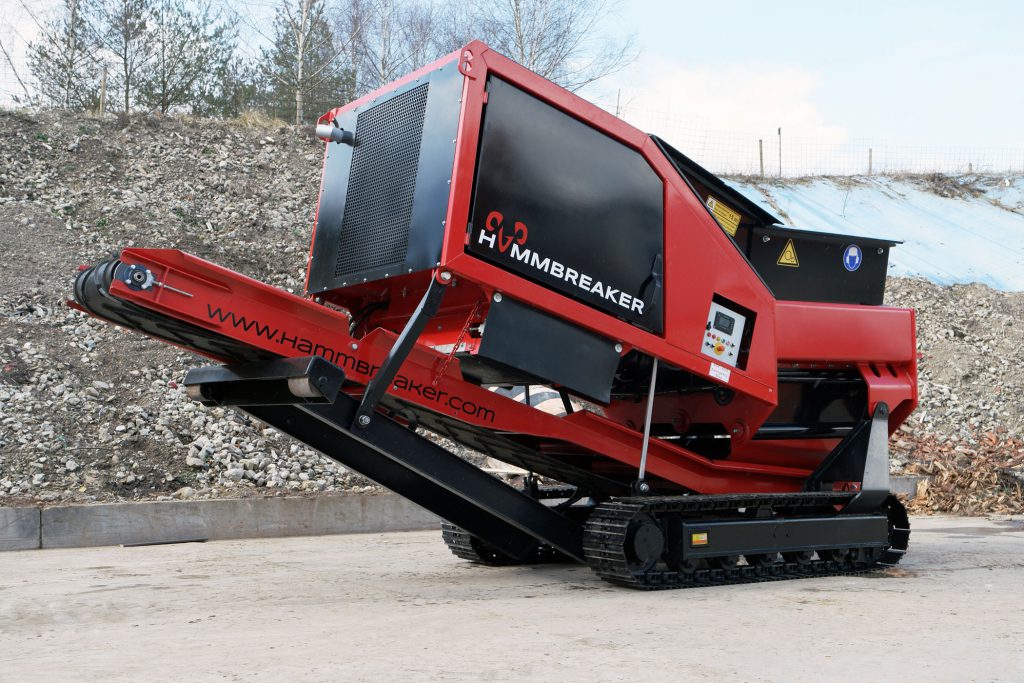

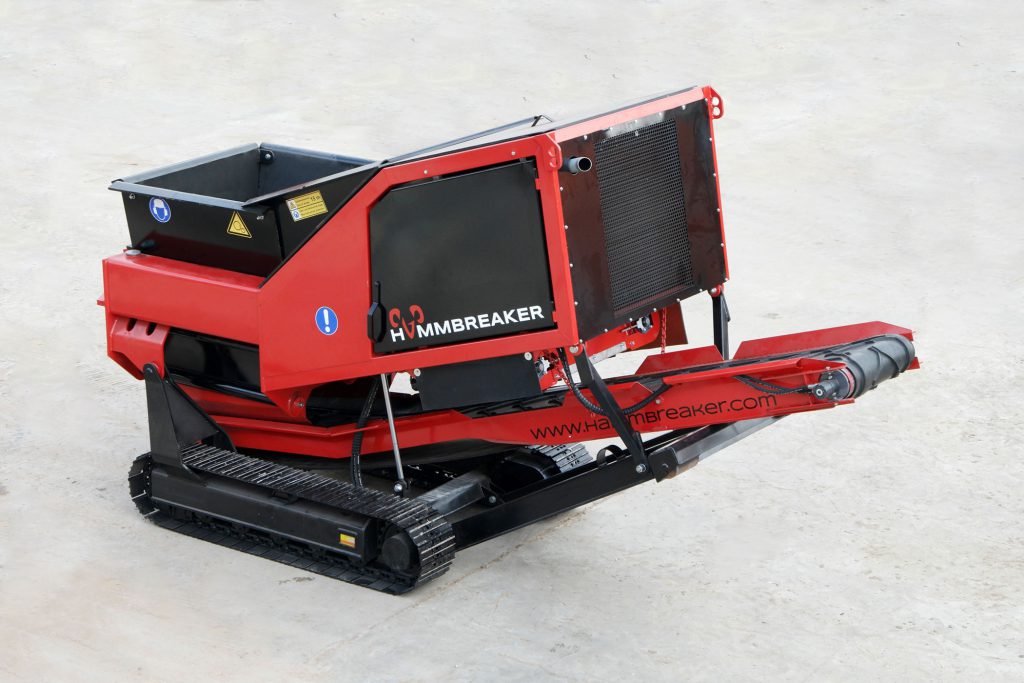

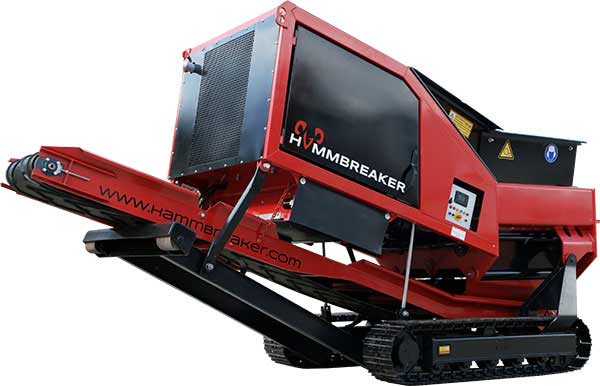

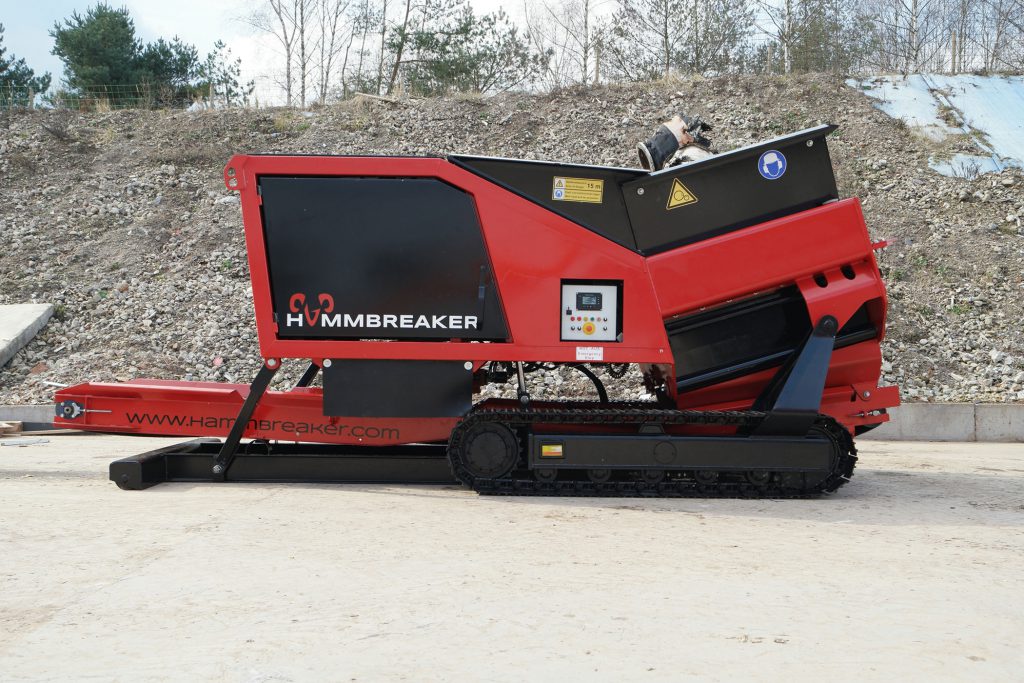

The HAMMBREAKER is a multi-purpose industrial shredder, especially designed to meet the recycling demands of emerging and developing markets. Whether you need a shredding machine for scrap metal, car bodies and white goods or a crusher for construction debris, reinforced concrete, tarmac, wood and waste: The HAMMBREAKER offers you technology that excels in durability, stability, easy operation and maintenance.

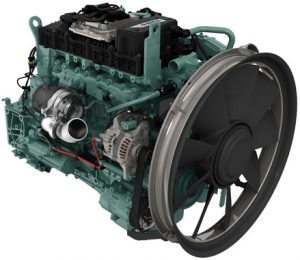

  • 220 hp 5 liter Volvo Penta diesel engine
  • Tier 3 / Stage IIIA compliance
  • hydrostatic drive with power regulated hydraulic motors
  • engine speed approx 2200 rpm
  • built-in hydraulic oil cooler
  • torque 160 000 Nm
  • diesel tank capacity 2 x 200 liter

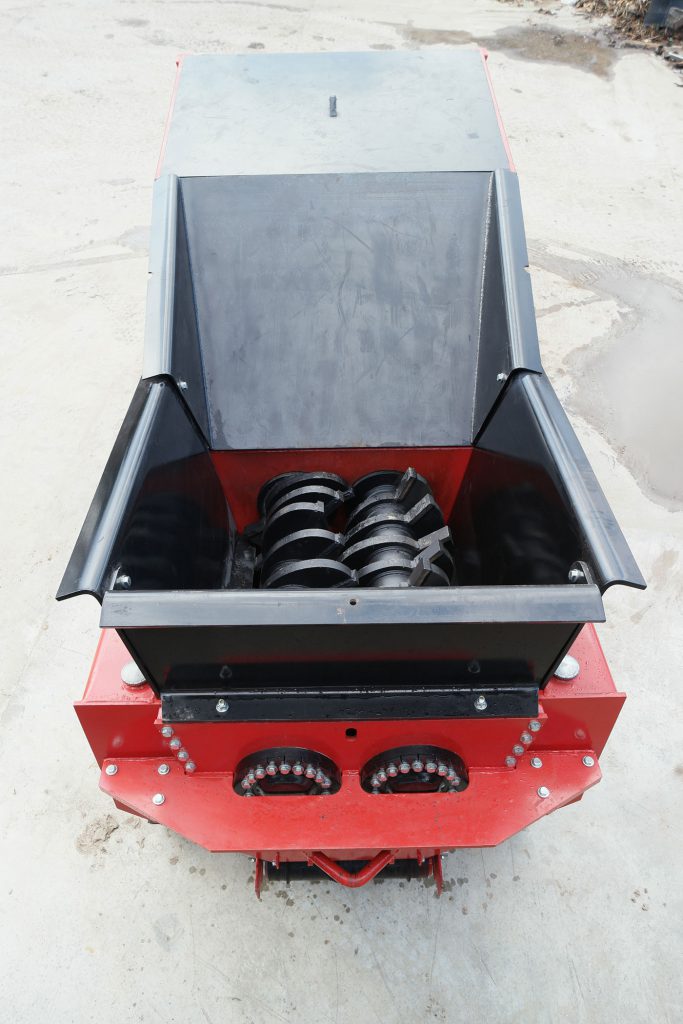

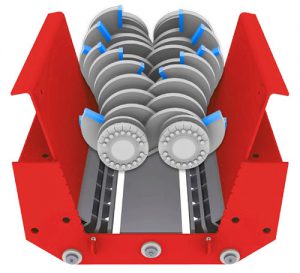

Two Shaft System
  • open shredding unit
  • double breaking combs (retractable)
  • automatic reverse to prevent damage
  • different shredding programs (sync/async)
  • time-induced automatic RPM shaft adjustment
Quick Change System
  • reduces downtime
  • easy and fast maintenance access
  • complete procedure takes less than 1 hour

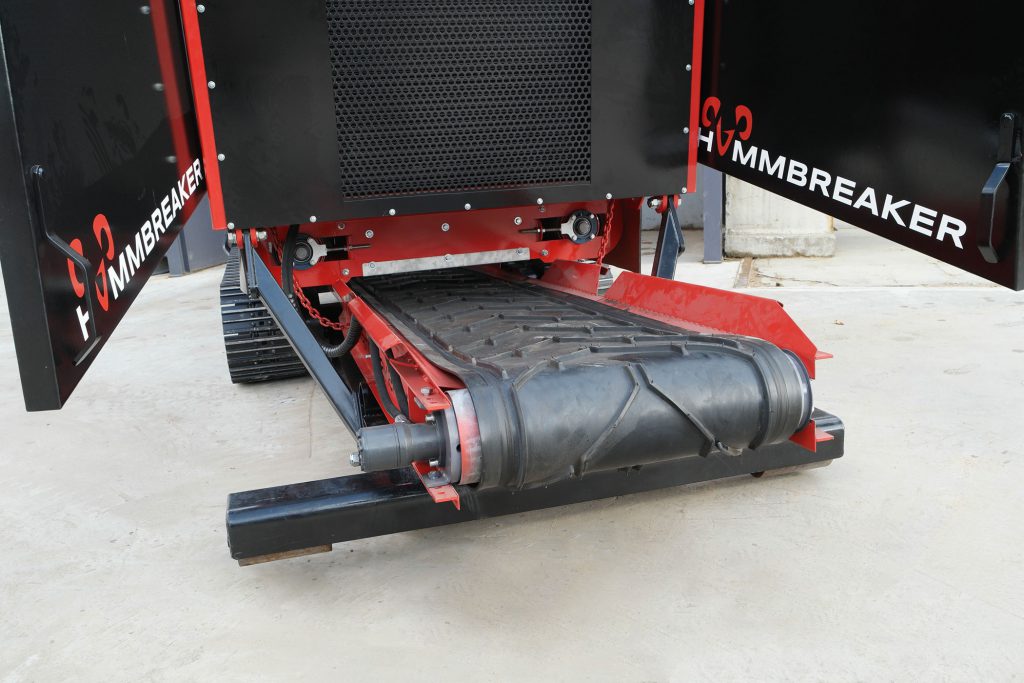

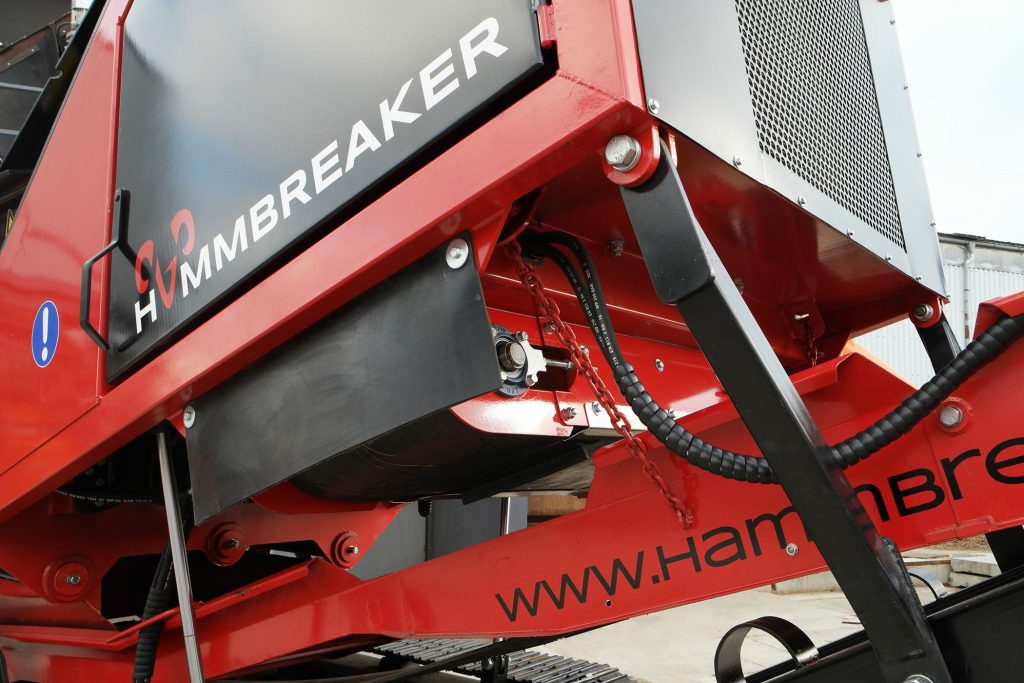

  • high quality chevron belt
  • foldable (for transport)
  • belt width 800 mm
  • discharge height 2500 mm

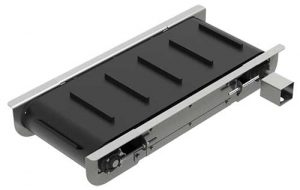

Permanent Overbelt Magnet
  • effective Fe separation
  • laterally fitted over discharge belt
  • approx. weight: 1t

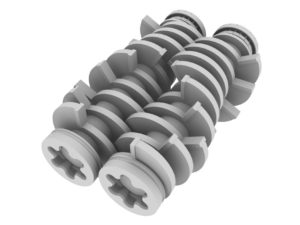

Additional Set – Shafts
  • prevent downtime during shaft maintenance (refurbishment)
  • compatible with quick change system
Additional Set – Quick Change System
  • can be pre-fitted over additional shaft set
  • reduces number of maintenance steps
Material Throughput* Final Size*
Construction Debris 80 – 120 t/h 0 – 60 mm
Concrete with Rebar (up to 16 mm) 70 – 100 t/h 0 – 60 mm
Concrete Railroad Ties 4 ties/min 0 – 60 mm
Tarmac/Asphalt 80 – 120 t/h 0 – 60 mm
Car Bodies 1 car/3 min 250 mm
White Goods 10 t/h 250 mm
Tree Roots (up to 400 mm) 15 t/h 250 mm
Waste Wood 15-20 t/h 250 mm
Waste 10-20 t/h 250 mm

* approximate values

Price including shipment to nearest port

from 119.000€

Money Back Guarantee

100% money-back guarantee within 14 days of delivery / 100 operating hours if you are not satisfied with the machine – only transport costs and hourly usage charge are billed!

Compact Dimensions

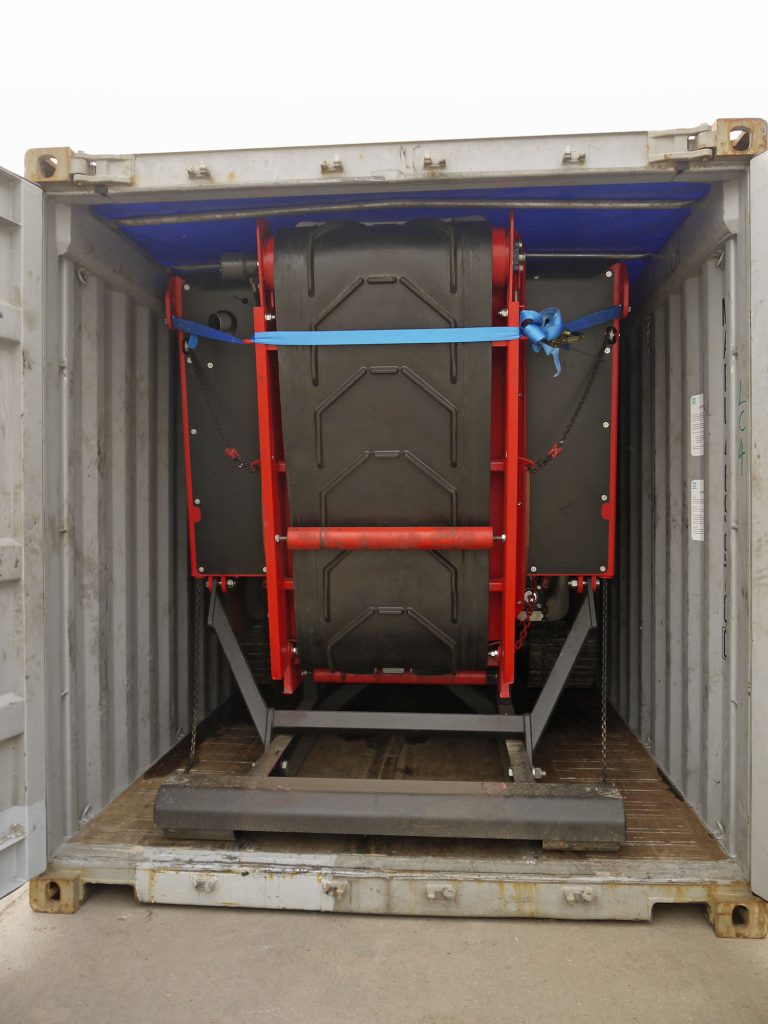

small form factor ensures easy transportation by hooklift truck – also fits in 40 ft sea container for shipping to nearest port

Universal Application

suitable for almost any kind of material including c&d, concrete, waste, wood, light scrap metal, etc.

Tailored to emerging markets

specifically designed to meet recycling demands of emerging and developing markets – Tier 3 / Stage IIIA compliance

Warranty Conditions

risk-free warranty on proper functioning of the machine for 12 months or 1.000 operating hours – excluding wear parts

Media

Are you interested?

Request your individual offer today! NO RISK – NO OBLIGATIONS!
